Frequently asked Questions about the SX-70

at infinity f8
at 2 meters f8/0.8
at 1 meter  f11/0.5
v at 0.6 meter f16/0.6
at 0.4 meter f22/0.3
at 0.3 meter f32/0.3

another table with fixed stops:

f8  at infinity
f11 at 2 meters
f16 between 1 and 0.6 meter
f22 between 0.6 and 0.4 meter (at 0.5 I guess)
f32 between 0.4 and 0.3 meter.

The lighter/darker knob puts a variation of about one and a half stop plus/minus when full turned right or left, this allow a finer tune of exposure. Every mark puts a variation of about a half stop plus/minus.

Q: Can I use type 600-film in a SX-70 camera ?

A: The SX-70 (time-zero) film has a speed of 125 ASA whereas the 600 has (guess)600 ASA.

• The 600 Film has four little plastic nubs at the bottom that prevent them from being loaded in a camera designed for type 600-film. You can either trim them off with a knife or use the following method (Thanks, Pat !):
  One can use a piece of exposed film, or the plastic cover off a pack to load it without removing the tabs. Hold the sheet under and slightly beyond the pack while loading it. The idea is to have something smooth that covers the tabs as the pack is inserted. Remove the sheet once the pack is in far enough and off you go.

• Now you have the problem, that the film is four times too fast, which is more than what you can compensate with the exposure-control: Even if you turn it fully into dark, your pictures will still be overexposed.
  There are two ways to correct this:
  • A temporary solution: Reduce the incoming amount of light :
    Affix (glue / tape / clip) a 1 stop neutral grey filter in front of the lens and set the lighten/darken control 1.5 stops to darken.
    This will also darken the View in your finder. Use a coated filter to get best results. Remember the L/D control returns to zero when you fold the camera.


  • NEW: An easy way to modify the SX-70 to use 600 film:
    To use 600 film in a SX70 camera, simply remove the 4 protruding black pieces of plastic from the leading edge of the pack of film. With no film in the camera, remove the front cover of the camera ( the one that surrounds the lens ). This is done by gently easing outwards the housing sides nearest to the bottom hinge ( I do this with my thumb nail so no crowbar work needed! ). Once the cover is removed you can then pop out the neutral density filter from the inside of the cover. Replace with a similarly thin piece of clear plastic. Re fit the housing, insert film, turn the exposure compensation to its darkest setting and enjoy the results. Each time the camera is closed, the exposure compensation dial will reset to the neutral position. An irreversible modification can be done to fix this by means of cutting off the plastic tongue at the top right hand corner of the name plate. I must stress that this is advise only and is totally done at your own risk, both in terms of any possible resulting personal injury or damage to equipment.

  • Laird Kelly writes:
    I think I found an easier modification: Since the tabs on the 600 pack catch on the flat spring on the bottom of the film compartment, I used a pair of bent-nosed hemostats (any needle-nosed pliers slim enough to fit would work) to crimp the corners of the spring thus allowing the unmodified pack to insert freely. By the way, I was able to use a pocket knife blade to (carefully) pry off the retaining ring over the light sensor and change the filter *without* removing the front cover - much easier when dealing with a Sonar model or one with screws holding the cover on. Laird Kelly
  • Another solution: Modify the exposure-electronics for 600 ASA
    The key component is the capacitor of the exposure integration circuit. If this capacitor replaced by one four times smaller, that would correspond to a four times faster film.

    Jerry Rebold writes:
    I boldly modified my SX-70 to use 600 film.
    The suggestion to change the capacitor to one that's 4 times smaller worked like a champ.
    Here's how:
    It would have been simple on the manual-focus models, but on the Sonar the focusing mechanism prevents the shutter housing from popping off as shown on your page, even though mine isn't screwed on from the back. So I ground a good-quality jeweler's screwdriver to fit the square-recess screws that hold the shutter housing, and found it was not too difficult to remove them; they self-thread into plastic so they were not overly tight.
    You can get to the back of the circuit board after you
    A) carefully trim the heat-staked fin that holds the end of the board with the light sensor and
    B) unsolder 7 soft flat tabs bent over the board at the other end. After using solder-wick to get rid of most of the solder, a long needle was used to pry up the tabs while unsoldering - under a 20X industrial microscope. It's a bit awkward working with all the parts strung together, but the board hinges up to give access to the back side with the resistor and capacitor.
    They were painted over, but with a little acetone and scraping and an ohmmeter I determined that the resistor is indeed 330K but the capacitor measured 1100 pF, not the 740 pF shown on your page.
    I first tried replacing the 330K resistor with 82K, but the pictures were still way too light. So I restored the 330K resistor and replaced the capacitor with a tiny 270 pF one from Radio Shlock, and voila... a 600-speed SX-70!
    We used a small ceramic disc of unknown specs from our junk box. To do it right, use a NPO or COG type (less sensitive to temperature changes) like Digi-Key cat no P4930 or BC101BCT, 50 volts 270 pF COG type. They cost less than 15 cents.

    Here's how www.rwhirled.com identified my SX-70:


    ---

    The complete serial number you entered is 5d940853525.
    Your camera has the Alpha 1 shutter design with the Alpha "K" focus wheel.
    Your camera is probably an SX-70 Sonar OneStep.
    The serial number itself is: 8535
    Your camera was made on April 9, 1979 during the A shift.


    ---

    Jerry Rebold

    P.S. I experimented with the new black & white 600 film (it's cheaper) and here's the first successful pic.
    The out-of-focus look is from the scanner:


    ---

  • Tony Wong writes:
    I would like to give you some feedback about your update information for converting an older SX-70 to use the newer 600 speed film.
    I have a Sonar model and the modifications described worked well. I have taken about 20 pictures with the new mods and they came out great. Enclosed is a sample of the pictures I took.
    First, I started at the beginning by removing the main body and roller assembly, this I did not need to do. I should have started with section C:, the shutter housing. Everything Marty Kuhn described is pretty much the same. I replaced both the resistor and capacitor since the resistor measured about 275 K ohm which means it drifted about 18%, a bit much for my preference. The only comment about choosing a replacement component is, the capacitor should be as small as possible since there is a recess in the housing a bit wider than a resistor and about 2 resistors deep. The capacitor I bought was too tall. After I replaced the components, I had to paint the whole area black. Both sides of the circuit board around the photo diode were painted black.
    On my SX-70 Sonar, the circuit board was held in place by soldered connections for the shutter release button, LED, and a plastic tab melted down to provide a cheap lock-down. I had no screws holding my circuit board.
    From the pictures I have taken with the new mods on my camera, the pictures appear better exposed than before with the standard SX-70 film. I feel the color and contrast is a bit better and perhaps the film is a bit sharper too. Overall, I like the new Platinum film. I hope that the new film does not leak the white development paste that the old film did, that was quite annoying.
    In order to use the new 600 Platinum film (Polaroid 32 ) I had to trim the center two tabs protruding from the bottom corner of the film magazine (it's on the bottom of the side that you insert first into the camera.) The center two tabs which are barely noticeable, will catch on the spring mounted on the bottom of the camera which holds the magazine up in the film bay. Otherwise, there are no other obstructions or differences that I have noticed.
    If I like the camera enough, I will build the flash adapter. I think the camera is really worth it.
    Thanks for posting such great information Georg, I found it very helpful and I like my SX-7- more for it.
    Keep up the good work!
    Tony Wong


It took me a while to figure out how to remove the shutter housing from the camera. It is difficult on the Sonar model because the cover has additional clips at the top on each side and not only on the bottom. You have to be more aggressive to spread the sides of the cover to release the clips. No screws were involved. Also, it is not necessary to remove or open the Sonar the unit at all. Here are some hints for your site: To remove the leather from an SX-70, use HEAT. Don't try to just pry it off. I use a hair dryer and a small, flexible putty knife. When desoldering components, don't bother trying to use a plunger type vacuum desoldering tool. These just make a mess and require too much heat. Desoldering braid works the best and with the least damage. Make tools from wooden sticks for prying, pressing pins, etc. They don't scratch the camera. Best regards,

The cause of the overexposure problem was shutter drag. A slight amount of drag does not cause problems when used with Time Zero film but will cause problems when converted to 600 speed. This variable is why the mod works well on some camera and not so well for others. A good cleaning of the shutter assembly clears up most of the problem. I found on all the models I converted that I had to substitute a clear filter for the tinted photo cell cover. The cameras now take beautifully exposed photos with 600 speed film without having to dial in compensation for normal lighting. Jim Meyers

There are at least three different electronic circuits, which work on the same principle but have different capacitor values.
This modification requires good electronics- and mechanical skills.
The flexible printed circuits Polaroid uses in the SX-70 disintegrate when they are heated too much while soldering.
Be aware that you may destroy your camera when you try this modification.
George

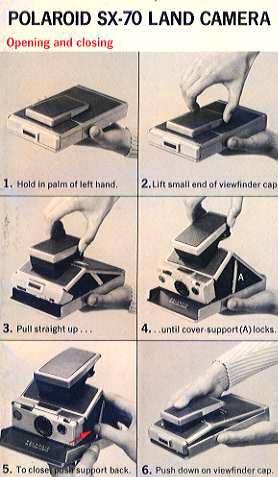

A: See the article How to disassemble a SX-70 Camera

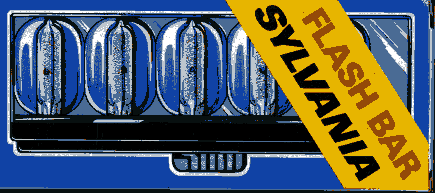

Flashbars-FAQ

I have added an article about Flashbars that includes schematics for an adapter that connects electronic flashes to a flashbar-socket.

A: The camera can be triggered by shorting the two contacts, which happen to be the same contacts that go to the red button internally.

Q: How to make multiple exposures with a SX-70 ?

The trick is to defeat the little hook thingy that shoves the film into the rollers. See the notch on the back left corner of the cassette? Cut a strip of thin steel that just slides into that notch on top of the film (maybe 3/16 wide and 1.5 inches long), and bend it into a cross-section something like the following:

_________________________
                          \
                           \
                            |

You start with the cassette already loaded in the camera. In total darkness, pull the cassette back out of the camera and slide this device into the slot, with the bent part down and snugly against the back of the cassette. Then put the cassette back in the camera. Instead of ejecting the top sheet as usual, the hook should now ride up over the ramp and slip along the top.

Now take as many exposures as you want. When you're done, go back in the dark, pull the cassette out, pull out the strip of metal, and pop the cassette back in the camera. The top sheet now ejects normally, developing your multiple exposure.

Why would anybody go to all this trouble? Well, in my case I was working with a 3D ray tracing program back in the late '80s. I wanted a quick way to view the program's 24-bit output, but the company hadn't gotten any 24-bit displays yet. So I saved a separate 8-bit indexed file for each of the Red, Green, and Blue channels, hacked the color look-up tables to display linear red, green, or blue, and "photo composited" on the SX-70 by displaying each channel in turn and doing a multiple exposure.

For grins, I'm attaching some example shots. In the plane photo you can see where my cheater slipped out onto the film. The Newton's cradle shot on the left is a joke I played on the photo lab. I was also shooting 35mm negatives, so I thought it might be amusing to have one "positive" image on the film. I just reversed the order of the color palettes.

Q: What is the purpose of the four contacts at the rear of the flashbar slots of Sonar SX-70 cameras ?

A: The contacts give handshaking information to attached flash units. This especially important if the flash unit is powered from the battery in the camera's film pack because it cannot focus or eject pictures and recycle the flash at the same time. It also makes sure the shutter button is blocked until the flash is ready.
Flash socket, top view from rear of camera:

(1 )(2 )(3 )(4 )(5 )(6 )(7 )
(1')(2')------------(6')(7')

(1)- flashbulb 5
(2)- flashbulb 4
(3)- Power supply from Flash IC (+6V)
(4)- flashbulb 3
(5)- flashbulb 2
(6)- flashbulb 1
(7)- connect to GND for flash mode (camera)
(8)- GND

The contacts with ( ' ) are opposite to the respective contacts
(1')- + voltage when focusing(shutter button slightly depressed)
(2')- + voltage when taking (shutter button fully depressed)
(7')- + voltage when camera unfolded
(8')- + voltage when camera focus not in park position

Also see the article 636 Flash for SX-70 Sonar for further explanation of how the contacts can me used.

If anyone out there repairs / services / modifies SX-70 and other Polaroid cameras I'd gladly put your address and e-mail on this page.

Q:How do I make very long timed exposures ?

If this is not long enough for you ,you can extend exposure infinitely using the following method (Thanks Gavin Blake !)
when you are in a low light situation with the SX-70 and you expose, the shutter will open for 15-20 seconds...during this time if you simply open the front panel (i.e. as if to load film) then you interrupt and shut down the exposure circuits without closing the shutter.   This will then keep the shutter open until you close the panel again which should then eject the film.  If the film will not immediately eject then simply fire the exposure button again and it will.  Simple hey.  This should be carried out with the camera on a tripod for obvious (camera shake) reasons

Q:Who still repairs SX-70 cameras ?

Instant Photographic Repair in New Jersey, USA
phone: 1-973-831-8616
